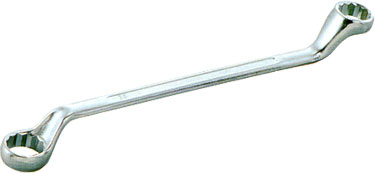

  • Bihexagonal Ring Spanner
    Drop Forged, Carbon steel, chrome plate with / without polished heads.

Standard Sizes Packing
MM S.A.E W.W Weight in gms. Pcs. per carton
6x7 . . 0.035 500
6x8 1/4x5/16 1/16x3/32 0.040 500
8x9 5/16x11/32 . 0.050 400
8x10 5/16x3/8 . 0.050 400
10x11 3/8x7/16 1/8x3/16 0.065 250
10x12 . . 0.075 250
11x12 . . 0.045 600
12x13 7/16x1/2 3/16x1/4 0.115 200
12x14 . . 0.115 200
14x15 1/2x9/16 1/4x5/16 0.140 200
14x17 9/32x11/16 . 0.145 150
16x17 5/8x11/16 5/16x3/8 0.170 150
17x19 5/8x3/4 . 0.180 100
18x19 3/4x25/32 . 0.210 100
19x22 3/4x7/8 3/8x7/16 0.245 80
20x22 13/16x7/8 . 0.285 80
21x23 . 7/6x1/2 0.325 60
22x24 7/8x15/16 . 0.315 60
24x26 15/16x1 1/2x9/16 0.400 60
24x27 15/16x1-1/16 . 0.420 60
25x28 1x1-1/8 9/16x5/8 0.485 50
27x30 . . 0.600 40
27x32 1-1/16x1-1/4 5/8x3/4 0.620 40
30x32 . 11/16x3/4 0.620 40

Standard Metric Sets
mm RM 5 RM 6 RM 6A RM 8 RM 10 RM 10A RM 12 RM 12A
6x7 . * . * * * * *
8x9 * * * * * * * *
10x11 * * * * * * * *
12x13 . * * * * * * *
14x15 * * * * * * * *
16x17 * * * * * * * *
18x19 * . * * * * * *
20x22 . . . * * * * *
21x23 . . . . * * * *
24x26 . . . . * . * .
24x27 . . . . . * . *
25x28 .. . . . . . * *
27x32 . . . . . . *
30x32 . . . . . . . *
Wt. in gms. 0.635 0.575 0.750 1.070 1.795 1.815 2.900 2.920
Sets per carton 30 40 30 20 12 12 8 8
Standard S.A.E. Sets
S.A.E RS 5 RS 5A RS 6 RS 6A RS 6B RS 8 RS 10
1/4x5/16 * . * . . . *
5/16x11/32 . * . * . . *
3/8x7/16 * * * * * * *
7/16x1/2 . . . . . . .
1/2x9/16 * * * * * * *
19/32x11/16 * * * * * * *
5/8x3/4 * * * * * * *
25/32x3/4 . . * * * * *
7/8x15/16 . . . . . * *
15/16x1 . . . . * . .
1x1-1/8 . . . . . * *
11/16x1-1/4 . . . . . * *
Wt. in gms. 0.570 0.580 0.780 0.790 1.140 2.160 2.250

Sets per carton

 40 50 30 30 20 10 10
