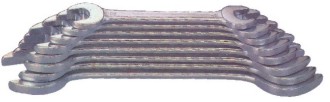

Double Open Ended Spanners
  • Double Open Ended Spanner
    Drop Forged, Carbon steel, chrome plated, with / without polished heads.
Standard Sizes Packing
MM S.A.E W.W Weight in gms. Pcs. per carton
6x7 . . 0.015 1200
6x8 1/4x5/6 1/16x3/32 0.020 1200
7x8 . . 0.020 1200
8x9 5/16x3/8 . 0.020 1000
8x10 5/16x11/32 . 0.020 1000
9x10 . . 0.035 1000
9x11 . . 0.035 600
10x11 3/8x7/16 1/8x3/16 0.040 600
10x12 . . 0.045 600
11x12 . . 0.045 600
12x13 7/16x1/2 3/16x1/4 0.050 500
11x14 . . 0.050 500
12x14 . . 0.050 500
14x15 1/2x9/16 1/4x5/16 0.070 350
13x17 . . 0.080 300
14x17 9/16x5/8 .. 0.095 300
16x17 19/32x11/16 5/16x3/8 0.100 300
16x17 5/8x11/16 . 0.100 300
17x19 3/4x11/16 . 0.135 240
18x19 3/4x25/32 . 0.135 240
17x22 5/8x3/4 . 0.155 160
19x22 3/4x7/8 3/8x7/16 0.180 160
20x22 25/32x7/8 . 0.180 160
21x23 . 7/16x1/2 0.200 150
22x24 7/8x15/16 .. 0.200 150
22x27 . . 0.260 120
24x26 15/16x1 1/2x9/16 0.260 120
24x27 7/8x1-1/16 . 0.260 120
25x28 15/16x1-1/8 9/16x5/8 0.305 100
27x30 . . 0.380 75
27x32 1-1/16x1-1/4 5/8x3/4 0.380 75
30x32 . 11/16x3/4 0.380 75

Standard Metric Sets
mm DM 5 DM 6 DM 6A DM 8 DM 10 DM 10A DM 12 DM 12A
6x7   *   * * * * *
8x9 * * * * * * * *
10x11 * * * * * * * *
12x13   * * * * * * *
14x15 * * * * * * * *
16x17 * * * * * * * *
18x19 *   * * * * * *
20x22       * * * * *
21x23         * * * *
24x26           *   *
24x27         *   *
25x28             * *
27x32               *
30x32             *
Wt. in gms. 0.365 0.295 0.415 0.610 1.070 1.070 1.755 1.755
Sets per carton 60 80 60 40 24 24 16 16


Double Open Ended Spanners
Standard S.A.E. Sets
S.A.E DS 5 DS 5A DS 6 DS 6A DS 6B DS 8 DS 10
1/4x5/16 *   *       *
5/16x11/32   *   *     *
3/8x7/16 * * * * * * *
7/16x1/2
1/2x9/2 * * * * * * *
19/32x11/16 * * * * * * *
5/8x3/4 * * * * * * *
25/32x7/8     * * * *
7/8x15/16           * *
15/16x1         *
1x1-1/8           * *
11/16x1-1/8           * *
11/16x1-1/4           * *
Wt. in gms. 0.385 0.385 0.565 0.565 0.805 1.430 1.470
Sets per carton 60 60 40 40 40 20 20
